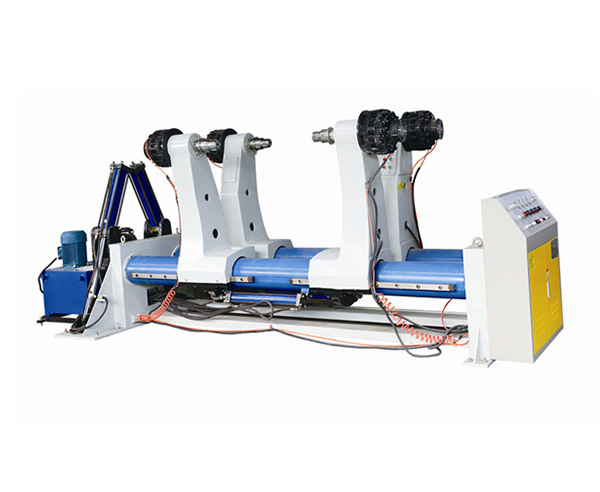

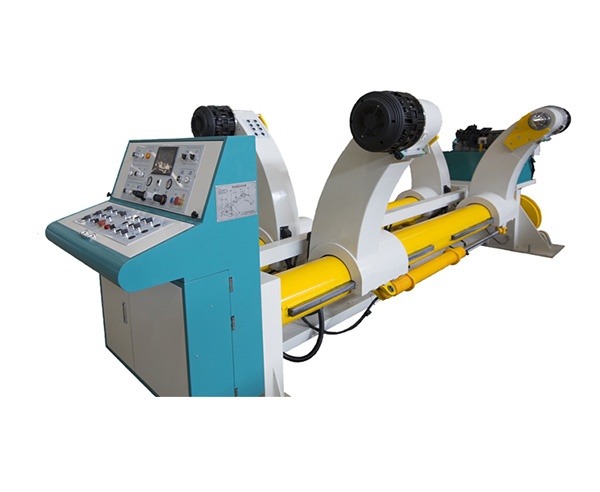

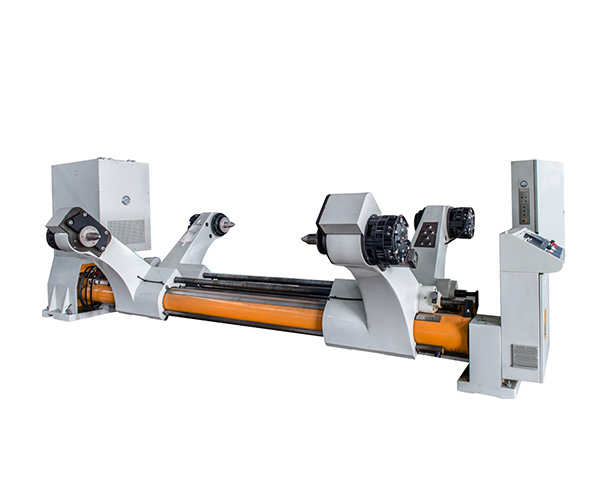

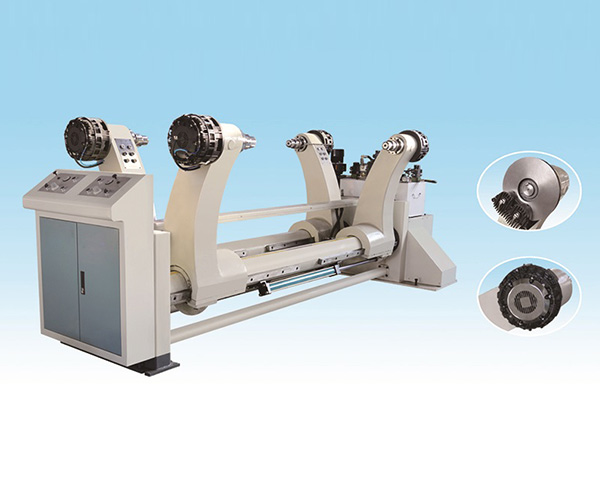

※Spec of stand：
1, Reel Stand driven by hydraulic
2, Kraft paper range
Width： Max：1600mm Min：900mm
Diameter：Max：￠1400mm Min：￠350mm
3, Max load-bearing: 2500kg (One side)
4, Main roller dia.：￠219mm
5, Pneumatic Source Pressure（Mpa）：0.4---0.8Mpa
6, Power: 380V 50Hz
※Spec of hydraulic system：
1, Working Pressure（Mpa）:16---18Mpa
2, Hydraulic Cylinder Range（Lift/Down）：￠100×440mm
3, Hydraulic Cylinder Range（Clamp/Loosen）：￠63×700mm
4, Hydraulic Station Motor Power：4KW Short Time(S2) Working Type Nominal voltage:380V 50Hz
5, Hydraulic Station Electromagnetic Valve Working Power：220V 50 Hz
※Spare Parts that need to buy from others and main materials：
| Main Parts’ Name | Band or Origin | Material |
| Main Rollers | Tianjin Iron & Steel Group Co., Ltd | wallboard thickness: 25mm, seamless steel tube: Φ219mm |
| Stand Arm | Xinyu | Q235A Weld Assembly |
| Wallboard | Jinan Iron & Steel Group Co., Ltd | Q235A Weld Assembly |
| Bear | HRB | |
| Expand Paper Holder | Hebei | |
| Electric Appliance | Zhengtai or Delixi |
