Structure and Features

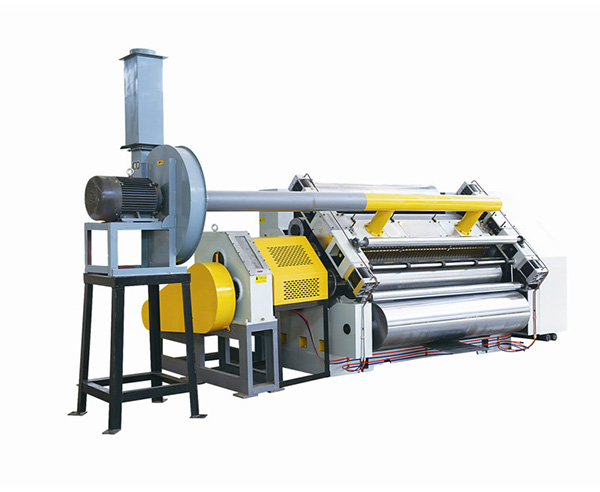

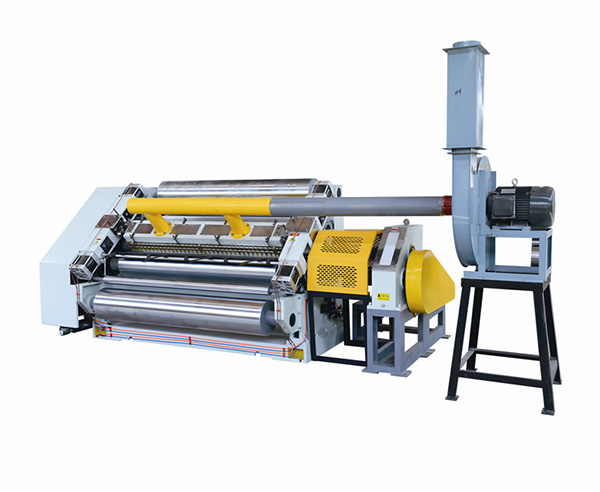

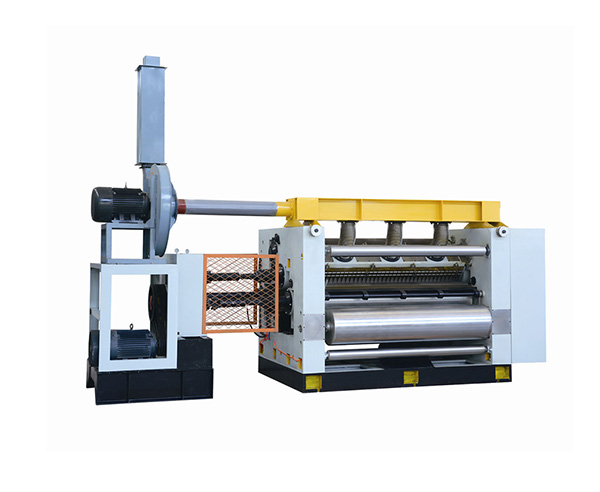

★Adopt suction structure with high pressure strong fan. Air suction device with sound, the air source and electrical control are on the same operation counters, the distance from the host machine will not be less than 1.5 meters, operating side closed all the hood.
★Engine base and wallboard adopt cast iron structure,the thicknes of wallboard is 130 mm. Independent gear box, gimble transmission.

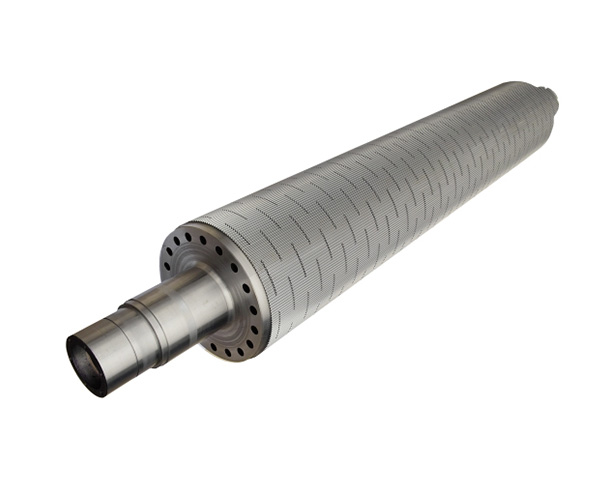

★Corrugated roller adopts 52 CrMo alloy steel, treated by tempering, laser quenching and surface polishing. Corrugated roller diameter is ¢320 mm, surface hardness is above HRC60 degrees. The bearings of the corrugated roller and pressure roller in the key part use in wafangdian high temperature resistant bearing.
★Pressure roller is ¢316 mm, surface is grinded and processed by chromium; Cylinder control moving, the material is medium-carbon steel 45, quenching and tempering treatment (with buffer device).
★Glue wallboard adopts slide structure, pneumatic control the glue, glue roller diameter is ￠215 mm surface is treated by polishing and hard chromium plating. The glue-scraping roller surface is polished and treated by hard chromium.
★Glue part can move bodily , replace glue roller quickly and conveniently. Electric adjustment glue spread quantities of digital display.
★Corrugated roller, pressure roller raw materials provided by Zhongyuan special steel , corrugated roller unilateral 0.15 mm high on, pressure roller unilateral 0.075 mm high. Add limiting device.
★Pressure cylinder uses ¢160 mm cylinder.
★Preheating roller adopts ¢320 mm seamless steel tube which is produced by Tianjin Iron and Steel Group Co., Ltd, all with metal hose connection.
| Sr NO | UNIT | 320 SERIES |
| Corrugated Rollers | MM | 320 |
| Press Rollers | MM | 316 |
| Glue roller | MM | 215 |
| Preheater | MM | 2*￠320mm |
| Common Spec | ||
| Working width | MM | 1600/1800/2000/2200 |
| Operation Direction: | Left or right | |
| Machine Speed | M/MIN | 120M/MIN |
| Temperature | ℃ | 160—200 |
| Air pressure | Mpa | 0.4—0.9 |
| Steam Pressure | Mpa | 0.8—1.3 |
| Corrugated Flute Type | UV or UVV | |
| Spec of Motor | ||
| Sr NO | KW | VOLTAGE |
| Fan Motor | 15kw | 380V 50Hz |
| Main Motor | 22kw | 380V 50Hz |
| PLS NOTE: CAN CHOOSE DIFFERENT VOLTAGE | ||
| Main Parts’ Name | Band or Origin | Material |
| Wallboard & foundation plate | XinYu | HT200 |
| Gear Box | XinYu | QT200 |
| rotating joint & flexible metallic tube | Shandong Tengzhou Rotating Joint Factory | |
| Motor of Main Power | HengShui |
