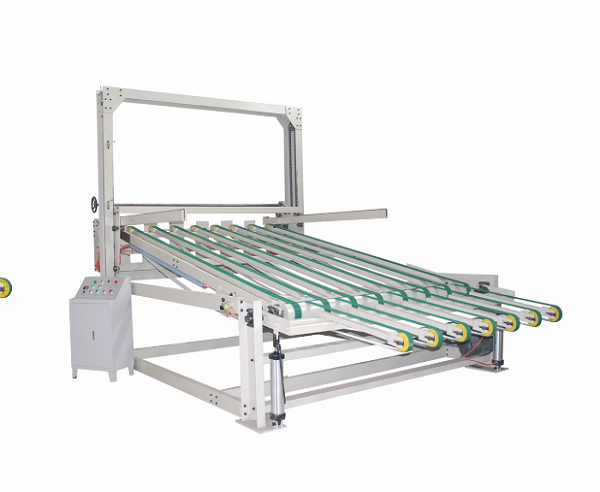

Board stacker
1. Auto/manual control modes available;
The tension of conveying belt of sheet collecting arm can be set separately without the limit by belt length featuring easiness, flexibility and quickness.
2. Collector Bed Elevation
(1) Driven by a strong chain for smooth elevation and transverse movement;
(2) 1600mm stacking height;
(3) Collecting bed elevation motor is attached with a brake to remain it at a fixed position without sliding down.
3. Collection Baffle
(1) Collecting plate is driven pneumatically and the stacking height is control by photocell;pneumatic parts adopt airtec or smc
(2) Back baffle can be set manually in line with blank length;
(3) The grained surface belt shows fine friction to prevent it from slipping.
(4)side baffle can gurantee the cardboard in order
