Product detail:
It is a machine that fully draw lessons from the international similar products of advanced technology, and it combine of experience in production and more elaborate of high technical content, excellent quality, novel appearance.

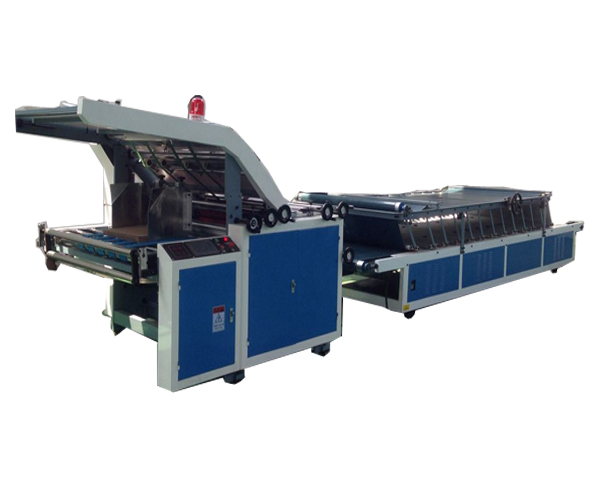

The Semi-auto laminating machine is Pre-coating film and no-film dual purpose machine. Compact structure, small volume, convenient operation, high degree of automation. The main parts of machine all choose international famous brand.
Electrical system controlled by programmable controller (PLC), one person can operate. Users only need to input in touch screen processing paper size, can achieve laminating and cutting two processes.
| Main technology parameter: | |||
| Model | YDFM-1100 | ||
| Max paperboard wide | 1050mm | ||
| Laminating speed | 0-30m/min | ||
| Laminating temperature | <=120℃ | ||
| Total power | 12kw | ||
| Weight | 2100kg | ||
| Size | 4000*1600*2000mm | ||
| Main parts and place of original: | |||
| Name | Specification | Place of original | |
| Wallboard | 20mm | HEBEI CHINA | |
| Heater roll | 320mm | GUANGDONG CHINA | |
| Rubber roll | 280mm | GUANGDONG CHINA | |
| PLC | YONGHONG 24MT | TAIWAN CHINA | |
| Screen | 7 inch | TAIWAN CHINA | |
| Solid state relay | C-LIN100A | ZHEJIANG CHINA | |
| The initiative motor | 3kw | JIANGSU CHINA | |
| Reducer | 5# | JIANGSU CHINA | |
