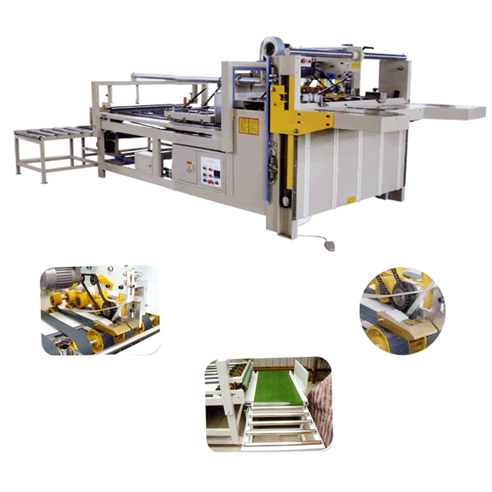

Main structure of machine
Feeding Section
1.Vacuum suction feeding to feed warping paperboard easily
2.Quality electromagnetic clutch and brake adpoted, feeding section controlled independently, operation easily
3.Stainless steel glue wheel adopted, long life and saving glue cost
4.Second creasing struction can impress again the paperboard which was not creased well
Gluing and Folding Section
1.Simpless structure and high reliability, glue quantity adjustable, cleaning easily
2.Creaser wheel adjustable, suit for 2-8mm thick paperboard
3.Imported quality rubber belt adopted, automatic folding
4.With paperboard rectify device and creasing rectify device
Counter and Stacker Section
1.Stacking and counting are simple and reliable
2.Digital control, operation easily and reliable. No-stop put in data and automatic counting
3.With rectification function
4.Paperboard counting and put out by pneumatic, stable and quickly
| 型号Model | 2400 | 2800 |
| 最大过纸Max feeding | 900*2200 | 1200*2500 |
| 最小过纸Min feeding | 300*900 | 300*900 |
| 外形尺寸Installation area | 11000*3000*1600 | 12500*3200*1600 |
| 整机重量Weight | 5500kg | 6500kg |
| 电源要求Power required | 11.5kw | 14.5kw |
| 适应纸板厚度cardboard thickness | 3-5ply cardboard | |
| 控制方式 control method | PLC | |
Main electiric parts as follows
| No | name | brand |
| 1 | Touching screen | DELTA |
| 2 | PLC | PANASONIC |
| 3 | inverter | DELTA,TAIWAN |
| 4 | relay | OMRON,JAPAN |
| 5 | Photoelectric switch | HUGONG,CHINA |
| 6 | Switch power | MEANWELL,TAIWAN |
| 7 | Thermal overload relay | CHINT,CHINA |
| 8 | breaker | CHINT,CHINA |
| 9 | switch | CHINT,CHINA |
| 10 | contactor | SEIMENS,GERMANY |
| 11 | button | SCHNEIDER,FRANCE |
